Narrow Trak Spiral

Get a Quote


Low Maintenance

  • All Ryson Spirals are designed for low maintenance and long life. Only high quality components are used throughout. All bearings are sealed for life and need no further lubrication. The chain is of heavy duty nickel plated construction and needs only infrequent lubrication. The slats need no maintenance and can easily be replaced as single components without the use of special tools.


Controls and Integration

  • Each spiral includes an inverter duty gear motor and two proximity switches, one to sense a slack chain and one to sense any overload. Several pre-wiring and controls options are available.

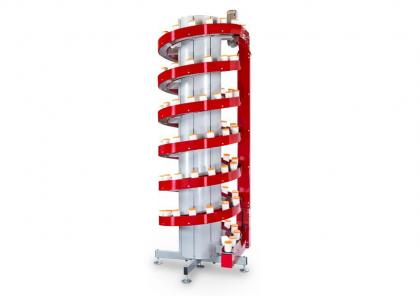

For compact spaces, nothing beats the Narrow Trak Spiral. More convenient than gripper elevators, it is able to carry products of variable size. With an outside diameter of 3'-7", it is one of the smallest spiral conveyors on the market. As an innovative machine, it has the added benefit of smooth operations reducing noise, as well as maintenance concerns.


Narrow Trak Spiral Features:


Modular Design

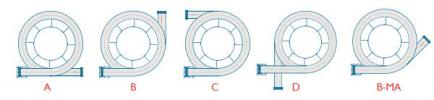

  • The Ryson modular design makes our spirals easy to configure and customize. All our spirals are made to order and are available in four basic configurations as it relates to the position of the in and outfeed tangents as shown, (A, B, C and D) The angle of the tangents can also be customized to meet specific layout requirements (B-MA for example) All configurations can operate up or down and in a clockwise or counterclockwise rotation.


One Drive

  • Only one drive motor is required, resulting in substantial savings in energy, controls and systems integration.


Nesting Slats

  • The 6” wide nesting slats provide a flat, smooth conveying surface and can be used for end-transfer or side-transfer. Friction inserts can be added when additional grip is required.


Built-in Protection

  • The Narrow Trak Spiral includes an automatic chain tensioner and a built-in overload protection device.


Easy to Install

  • The Narrow Trak Spirals ship in once piece, pre-assembled and pre-tested, reducing the time and cost of installation.
