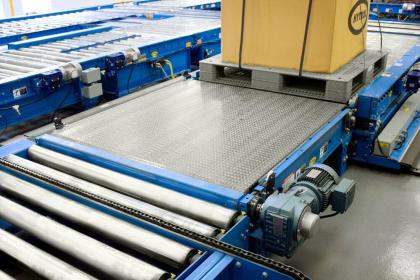

Heavy Duty Plastic Belt Accumulating

Get a Quote

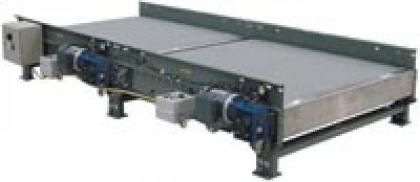

The Model PLEZD is a plastic belt conveyor designed to handle footed pallets, slip sheets, unitized loads, etc.-items normally non-conveyable on roller conveyor. The PLEZD provides Zero Back Pressure accumulation, reducing the possibility of product damage.

Model PLEZD Features:

  • Bed 1/4" UHMW over steel bed channels mounted in 7-1/2" x 7 ga. powder painted formed steel channels
  • Belt 1" pitch polypropylene plastic belt
  • Overall Frame Widths 34", 38", 40", 44", 48", 50", 54", 64", 78"
  • Motor 1/2 HP Gearmotor at discharge of each zone
  • Supports Adjustable Floor Supports Available
  • Capacity Up to 2000 lbs.
  • Availability 1 Week (Contact for sizes available)
