Medium Duty Accumulating-190-NSPEZ

Category: EZ Logic Conveyor

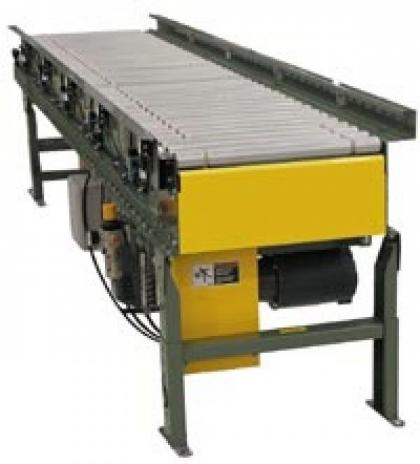

The Model 190-NSPEZ is a horizontal live roller conveyor designed for Zero-Pressure Accumulation of product. Positive braking in each zone reduces the possibility of damage to fragile items during accumulation. Singulation feature allows products to be removed from any location on the conveyor.

Features

Bed	9-1/2" deep x 12 ga. formed steel channel frame powder painted
Rollers	1.9" dia. x 16 ga. galvanized tread rollers spaced every 3" and an EZLogic® Accumulation Module located in each zone
Overall Frame Widths	16", 18", 20", 22", 24", 26", 28", 30", 34", 36", 40", & 42"
Motor	1/2 HP standard - 2 HP max.
Supports	Adjustable Floor Supports Available
Capacity	Maximum load; 15 lbs. per drive roller. No minimum load
Other	Accumulation Zones - 12", 18", 24", 30", & 36" Long Air Controlled

Product Specifications
