Right Angle Sortation Conveyor- ViperSort

Get a Quote

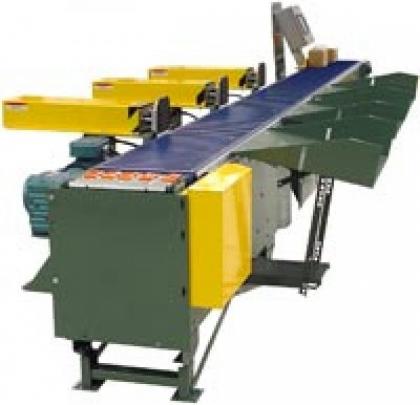

The Model ViperSort is a right angle sortation conveyor used to sort small to medium size products. The ViperSort utilized a patented design which enables the sorting of cylindrical products, extremely thin items such as blister packs, vinyl envelopes and other problematic items.


Model ViperSort Features:

  • Bed 6-3/8" deep x 12" ga. formed steel bed powder painted with aluminum guide rail extrusion capped with UHMW wearstrip placed on bed for carr way.
  • Overall Widths 13-1/4", 15-1/4", 17-1/4" & 19-1/4"
  • Motor 230/460V-3Ph. 60HZ. HP based on speed and length requirements
  • Supports Adjustable Floor Supports Available
  • Capacity Maximum unit package weight 25 lbs. For maximum conveyor distributed load, contact factory
  • Air Requirements 60 p.s.i.
