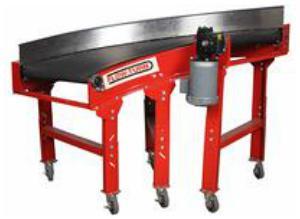

Powered Belt Curves
Category: Belt Conveyors
Features
| Frame Construction | Load capacity up to 40 lbs. per linear foot |
|---|---|
| Frame Construction | 12 Ga. standard. Heavier frame construction available |
| Frame Construction | All exposed welds ground smooth for USDA applications |
| Drive System | Shaft mounted gear reducer with flange mounted TEFC motor |
| Drive System | Normal mounting at outside radius, discharge end |
| Drive System | Number 50 flex chain with attachment links and hardened steel sprockets |
| Belt | 2 ply belting RAV (standard) - oil, heat, grease resistent. |
| Belt | Others per customer specifications |
| Paint | Air dry industrial enamel |
| Paint | Standard colors - tan, white, green, blue. Others available upon request |
Available Modifications:
-
10 Ga. formed steel, welded construction, adjustable from 30" to 36" belt height, standard. Other sizes upon request
- Ceiling hanger angles available
-
14 Ga. steel, no sharp edges - no charge
-
- Large tapered end rolls for high speed conditions
- Arcs - 15 degrees to 360 degrees
- Belt widths to specifications
- Stainless steel suitable for food applications
- Relief rollers for greater than 40 lbs. per linear foot loading
- Spiral construction
-
- Flange mounted motor
- Inside radius mounting where space is required
- Variable speed - mechanical or electrical adjustable speed (DC or AC)
- Slave drive - between two curves or PSC-Floturn supplied curve and straight section
-
- FDA & USDA approved white nitrile
- Ruff top or others upon request
- USDA and FDA approved
-
- Fixed belt heights from 8" minimum
- Foot locking portable floor supports
