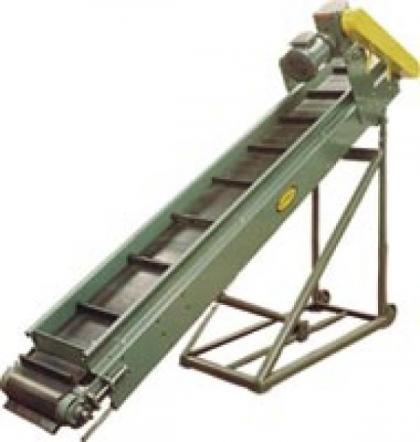

Portable Parts Conveyor

Get a Quote


The Model PC can be used as a portable or permanent parts conveyor. Side guards and cleated belt easily catch small stampings, plastic parts, etc., and carry them to hoppers or drums. Flapper guard prevents parts from falling through conveyor.

Model PC Features:

  • Bed 6-5/8" deep x 12 ga. formed steel bed with 3-1/2" high vertical guards
  • Belt 1-1/2" high molded cleats on 12" centers
  • Belt Widths 4",6",8",10",12",16",18",24"
  • Belt Speed 65 FPM
  • Drive End Drive (Overhead)
  • Motor 1/2 HP standard - 2 HP max.
  • Capacity 300 lbs. (total distributed load)
  • Features Portable base support is tubular steel mounted on 4" dia. steel wheels. Adjustable to control conveyor height at top and bottom. Adjustable floor supports available on longer units
  • Availability Online
