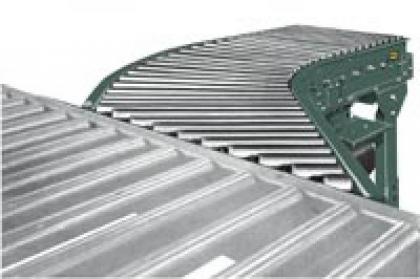

Medium Duty Spur (V-Belt)-190-LRS

Get a Quote



The live roller spur conveyors are used in diverging or converging applications. They may be self-powered or can be slave driven from ACC or LRC conveyors. These models available in 30° & 45° spurs.



Model 190-LRS Features:

  • Bed 6-1/2" deep x 12 ga. formed steel frame powder painted
  • Rollers 2-1/2" dia. tapered to 1-11/16" dia x 16 ga. galvanized and 1.9" dia. x 16 ga. galvanized rollers
  • Overall Frame Widths 16", 18", 20", 22", 24", 26", 28", 30", 34", 36", 40", & 42"
  • Motor 1/2 HP standard - 1 HP Available
  • Supports Adjustable Floor Supports Available
  • Capacity 500 lbs. (distributed load)
