Heavy Duty Tapered Roller Curve-25-CRRCT

Category: Live Roller Conveyors

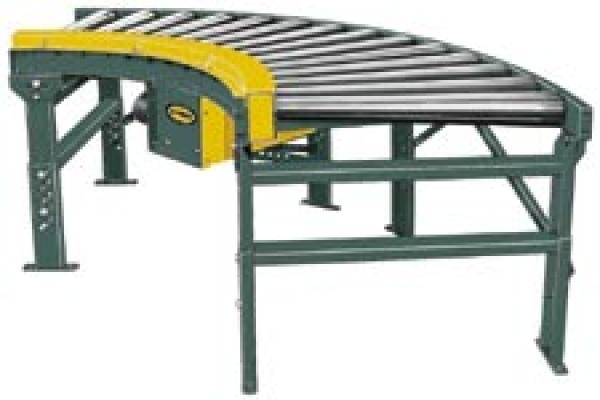

The Model 25-CRRCT is a heavy duty, chain driven roller curve conveyor commonly used in conjunction with the 25-CRR conveyor to carry heavy unit loads such as pallets and drums.

Features

Bed	4 ga. formed steel channel frame powder painted
Rollers	Chain Driven Tapered Tread Rollers
Overall Frame Widths	22-1/4", 24-1/4", 26-1/4", 28-1/4", 30-1/4", 34-1/4", 36-1/4", 40-1/4", 42-1/4", 46-1/4", 50-1/4", 58-1/4", 64-1/4" & 70-1/4"
Drive	Center Drive
Motor	1 HP standard - 1 HP max.
Drive Chain	#50 roller chain
Supports	Adjustable Floor Supports Available
Capacity	4000 lbs.
Reversible	Yes

Product Specifications
