Floor to Floor Slider Bed

Get a Quote

For more details and pricing visit our Online Store

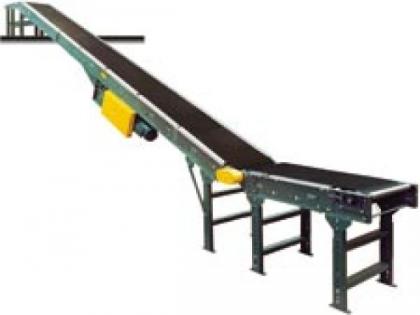

The Model SBI is a floor-to-floor incline conveyor. It is equipped with an adjustable double nose-over at the discharge end to insure a smooth transfer from incline to horizontal plane. Inclines are easily adjusted up to 30°. This conveyor can also be used as a booster conveyor in gravity flow systems.

Model SBI Features:

  • Bed 6-1/2" deep x 12 ga. formed steel frame powder painted. Standard sections come in lengths of 6', 8', & 10'
  • Belt Widths 10",12",14",16",18",20",22",24",28",30",34",36"
  • Drive Center Drive Standard
  • Motor 1 HP C-Face "SSB" Series Brake Motor - 2 HP max.
  • Supports Adjustable Floor Supports Available
  • Capacity 100 lbs. (per linear foot)
  • Reversible Yes
  • Availability Online
