Heavy Duty - 25SR/25SRC

Category: Gravity Conveyors

Our Heavy Duty Gravity Conveyors are used to carry packages on permanent or temporary lines requiring a wider or heavier load. They are often used in conveyor lines in areas such as warehousing, shipping, or assembly. Norpak has been a great reputation as a distributor of gravity conveyors, and we are always available to answer any questions or concerns you may have about our products. We offer heavy duty gravity conveyors in a wide variety of options and sizes to be able to best meet your needs.

Features

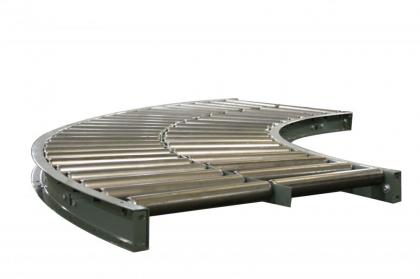

Gravity roller curves add to the versatility of straight conveyors
Some curves offered with tapered tread rollers to maintain product orientation
Majority of products convey with minimal pitch
Guard rails may be added to protect products

Product Specifications

Available Modifications:

Straight, Curved, or Tapered Curve Sections Available
- 10 Ga. Steel Frame
- 2.0" x 12 Dia. rollers (possible tapered rollers)
- 11/16" hex shaft, spring loaded rollers
- 5' ft.& 10' ft. long straight sections available
- 90° curves available
Straight, or Curved Sections Available
- 4 Ga. Steel Frame
- 2.5" x 11 Dia. rollers (possible tapered rollers)
- 11/16" hex shaft, spring loaded rollers
- 5' ft.& 10' ft. long straight sections available
- 90° curves available
