Low Profile Portable Parts

Get a Quote

For more details and pricing visit our Online Store

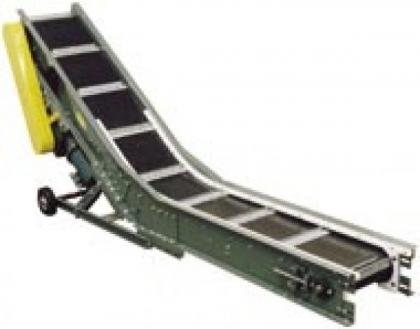

The portable Model PCX parts conveyor can be easily positioned under punch presses and extruding machines to catch small steel, plastic, or aluminum stampings, etc. The PCX conveys them quickly up to a hopper or drum.

Model PCX Features:

  • Bed 7-1/4" deep x 12 ga. formed steel side channel with bolt-in slider bed which provides 1" high sides above the belt
  • Belt Widths 12", 18", 24"
  • Belt Speed 25 FPM
  • Drive Underside Drive
  • Motor 1/2 HP standard - 2 HP max.
  • Capacity 100 lbs. (total distributed load)
  • Features Belt Scraper - mounted inside conveyor bed section to clean underside of return belt. Portable Base Support - adjustable from 4" to 30".
