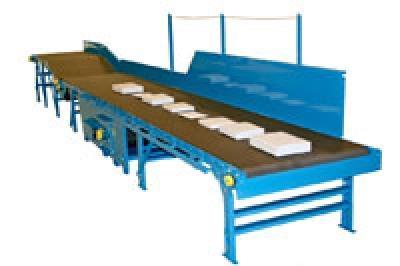

Parcel Belt Conveyor

Category: Belt Conveyors

The Model HSS is designed for the parcel handling industry with bolted construction.

Features

Bed	2 ga. formed steel slider bed bolted between two 3 5/8 in. deep x 10 ga. formed steel side channels.
Belt	4 belt widths. Supplied by customer.
Belt Speed	Constant 60 FPM.
Overall Conveyor Lengths	2', 4', 6', 8', & 10'
Drive	Center Drive with 8", 12" or 16" Dia. Drive Pulley
Motor	1HP
Supports	Adjustable FXG-Type Floor Supports Available
Capacity	Maximum load per linear foot of conveyor 50 lbs.

Product Specifications
