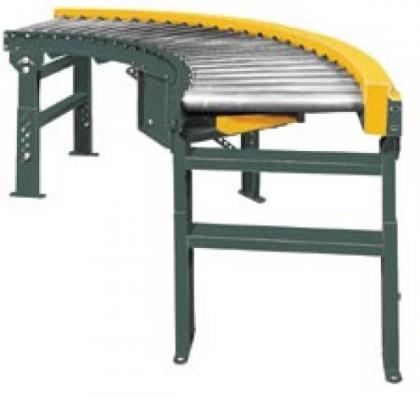

Heavy Duty Curve-25-CRRC / 26-CRRC

Category: Live Roller Conveyors

The Models 25-CRRC/ 26-CRRC are heavy duty, chain driven roller curve conveys or commonly used in conjunction with the 25/26-CRR conveyor to carry heavy unit loads such as pallets and drums.

Features

Bed	4 ga. formed steel channel frame powder painted
Rollers	Chain Driven Tread Rollers
Overall Frame Widths	22-1/4", 24-1/4", 26-1/4", 28-1/4", 30-1/4", 34-1/4", 36-1/4", 40-1/4", 42-1/4", 46-1/4", 50-1/4", 54-1/4", 56-1/4", 58-1/4", 60-1/4" & 62-1/4
Drive	Center Drive
Motor	1 HP standard - 2 HP max.
Drive Chain	#50 circular roller chain
Supports	Adjustable Floor Supports Available
Capacity	4000 lbs.
Reversible	Yes

Product Specifications
