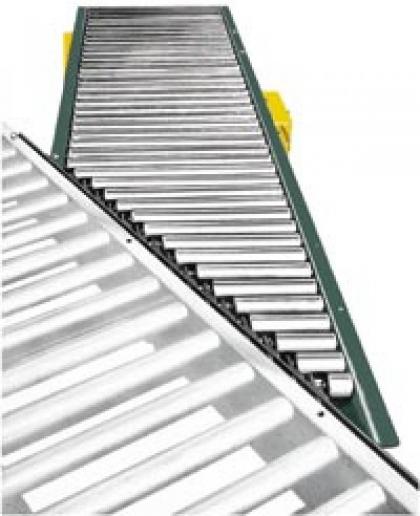

The live roller spur conveyors are used in diverging or converging applications. They may be self-powered or can be slave driven from ACC or LRC conveyors. These models available in 30° & 45° spurs.
Model 138 LRSS Features:
- Bed 6-1/2" deep x 12 ga. formed steel frame powder painted
- Rollers 1-3/8" dia. x 18 ga. galvanized roller(12" to 18" OAW) and 2-1/2" dia. tapered to 1-11/16" dia. x 16 ga. galvanized and 1.9 in dia. x 16 ga. galvanized straight roller (24" OAW)
- Overall Frame Widths 12", 15", 18" & 24"
- Motor 1/2 HP standard
- Supports Adjustable Floor Supports Available
- Capacity 150 lbs. (distributed load)
