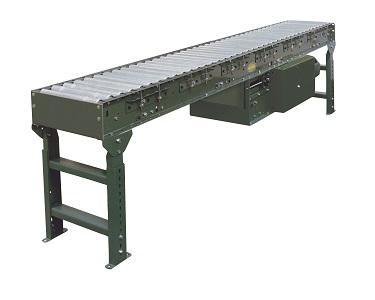

Flat Belt Driven Medium Duty Accumulating Conveyors - 190ACZ
Category: Accumulating Conveyors
The Model ACZ accumulates cartons, boxes, etc. Basic design eliminates complicated adjustments and allows a minimum of 2% Back Pressure.
Features
| 12 Bed Widths | |
| 2% Minimum Back Pressure | |
| Finger Tip Snub Roller Adjustment, Both Sides | |
| Center Drive | |
| Reversible | |
| Adjustable MS-Type floor supports available | |
| Bed | 6-1/2" deep x 12 ga. formed steel channel frame powder painted |
|---|---|
| Rollers | 1.9" dia. x 16 ga. galvanized tread rollers spaced every 3" and 1.9" dia. x 16 ga. galvanized pressure rollers spaced every 6" |
| Overall Frame Widths | 16", 18", 20", 22", 24", 26", 28", 30", 34", 36", 40", & 42" |
| Capacity | Maximum load per linear ft. of conveyor; 150 lbs., not to exceed rated capacities |
-
