Heavy Duty Chain Driven-36-CRRH

Category: Live Roller Conveyors

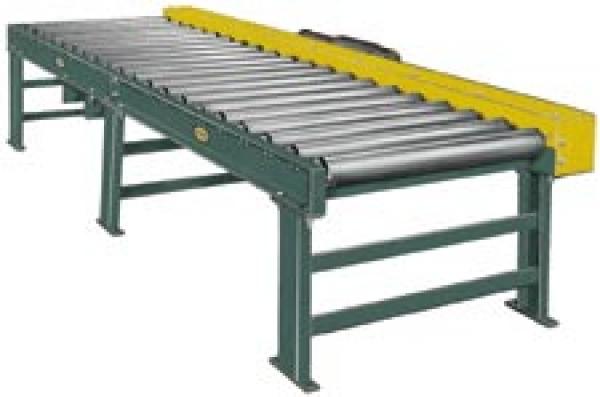

The Model 36-CRRH is a heavy-duty chain driven roller conveyor. Its tough, rugged design provides service under demanding manufacturing operations. The 36-CRRH is for conveying heavy pallets and drums.

Features

Bed	structural steel channel frame powder painted
Rollers	Chain Driven - 3-1/2" dia. x .300 wall unplated tread rollers spaced every 6" or 12"
Overall Frame Widths	26-27/32", 28-27/32", 30-27/32", 34-27/32", 36-27/32", 40-27/32", 42-27/32", 48-27/32", 54-27/32", 60-27/32", 62-27/32", & 70-27/32"
Drive	Side Mounted Drive
Motor	2 HP standard - 3 HP max.
Drive Chain	#60 roller chain
Supports	Non-Adjustable Floor Supports Available
Capacity	Maximum load per linear foot of conveyor; 2000 lbs. with supports on 5 ft. centers
Reversible	Yes
Applications	pallet handling, drum handling
