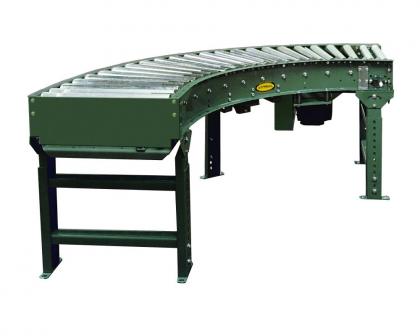

V-Belt Driven Curve Medium Duty Accumulating Conveyor - 190-LRC

Category: Accumulating Conveyors

Features
12 Bed Widths
Tapered Tread Rollers
Reversible
Adjustable MS-Type Floor Supports Available
Bed 6-1/2" deep x 12 ga. formed steel frame powder painted
Rollers 2-1/2" dia. tapered to 1-11/16" dia x 16 ga. galvanized and 1.9" dia. x 16 ga. galvanized rollers
Overall Frame Widths 16", 18", 20", 22", 24", 26", 28", 30", 34", 36", 40", 42"
Capacity 500 lbs. (distributed load)
Product Specifications
