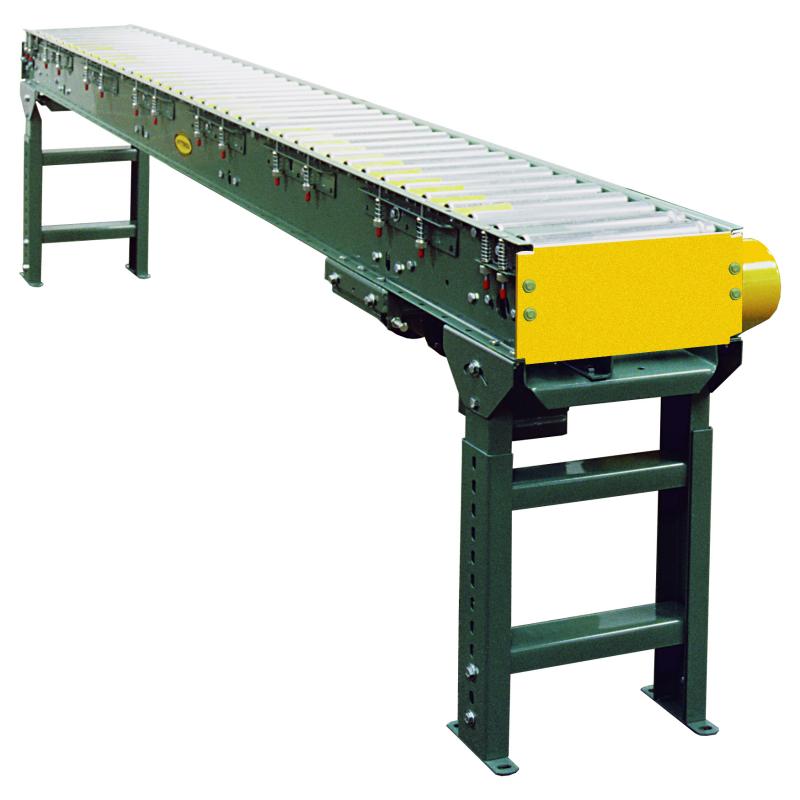

Medium Duty (V-Belt)-190-ACC
Category: Live Roller Conveyors
The simplest method ever devised for accumulating cartons, boxes, etc. Basic design eliminates complicated adjustments and allows a minimum of 2% back pressure.
Features
| Bed | 6-1/2" deep x 12 ga. formed steel channel frame powder painted |
|---|---|
| Rollers | 1.9" dia. x 16 ga. galvanized tread rollers spaced every 3" and 1.9" dia. x 16 ga. galvanized pressure rollers spaced every 6" |
| Overall Frame Widths | 16", 18", 20", 22", 24", 26", 28", 30", 34", 36", 40", & 42" |
| Drive | Underside Drive (standard) |
| Motor | 1/2 HP standard-2 HP max. |
| Supports | Adjustable Floor Supports Available |
| Capacity | Maximum load per linear ft. of conveyor; 150 lbs., not to exceed rated capacities |
| Reversible | Yes |
| Features | Finger tip pressure roller adjustment-no tools required |
| Availability | Online |
-
