Floor to Floor Roller Bed

Category: Belt Conveyors

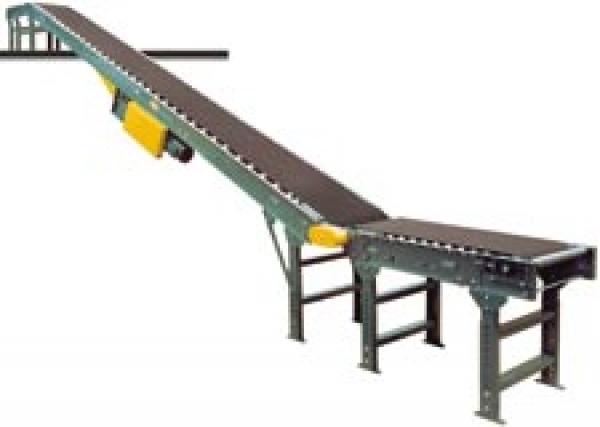

The Model RBI is a floor-to-floor incline conveyor. It is equipped with an adjustable double nose-over at the discharge end to insure a smooth transfer from incline to horizontal plane. Inclines are easily adjusted up to 30°. This conveyor can also be used as a booster conveyor in gravity flow systems.

Features

Bed	6-1/2" deep x 12 ga. formed steel frame powder painted. Standard sections come in lengths of 6', 8', & 10'
Belt Widths	10", 12", 14", 16", 18", 20", 22", 24", 28", 30", 34", 36"
Drive	Center Drive Standard
Motor	1 HP C-Face "SSB" Series Brake Motor - 2 HP max.
Supports	Adjustable Floor Supports Available
Capacity	225 lbs. (per linear foot max)
Reversible	Yes
Availability	Online

Product Specifications
