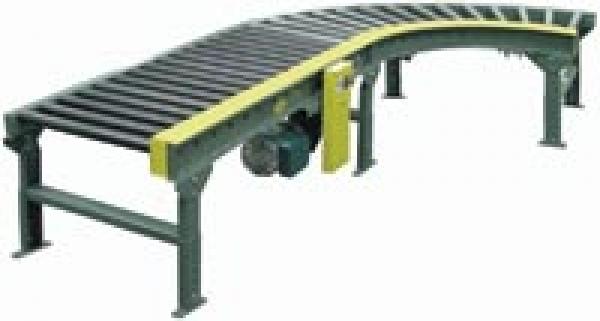

Chain Driven Live Roller Curve- 199-CRRC

Category: Live Roller Conveyors

The 199-CRRC is a chain driven live roller curve that aids in alignment of packages, cartons, etc., through 30°, 45°, 60°, and 90° curves. Can be used in conveying oily parts.

Features

Bed	Roller bed with 2-1/2 in. dia. tapered to 1-11/16 in. dia. x 16 ga. unplated rollers mounted in 10 ga. powder painted formed steel channel.
Overall Frame Widths	18", 20", 22", 24", 26", 28", 30", 34", 36", 40", & 42"
Motor	1/2 HP standard - 1 HP max.
Supports	Floor Supports Available
Capacity	850 lbs. total distributed live load
Other	#40 roller-to-roller chain. #60 motor drive chain.

Product Specifications
