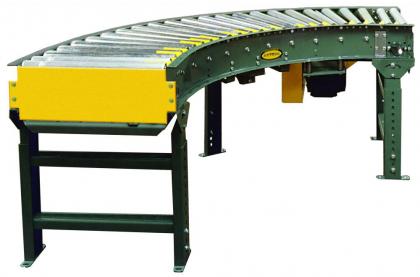

Line Shaft Driven Curve - Medium Duty- 138 LRC
Category: Live Roller Conveyors
The Model 138 LRC Live Roller Conveyor Curve is designed to be slave driven from the 190-NSP straight conveyor. Curves are used when turns are necessary in the conveyor line for operation to continue. Spurs can also be used to divert or converge applications.
Features
| 12 Bed Widths | |
| Slave Driven from Model 190-NSP | |
| Adjustable MS-Type floor supports available | |
| Bed | 9-1/2" deep x 12 ga. formed steel frame powder painted |
|---|---|
| Rollers | 2-1/2" dia. tapered to 1-11/16" dia. x 16 ga. and 1.9" dia. x 16 ga. galvanized rollers |
| Overall Frame Widths | 18", 24", 30" |
| Available in 90° | |
-
