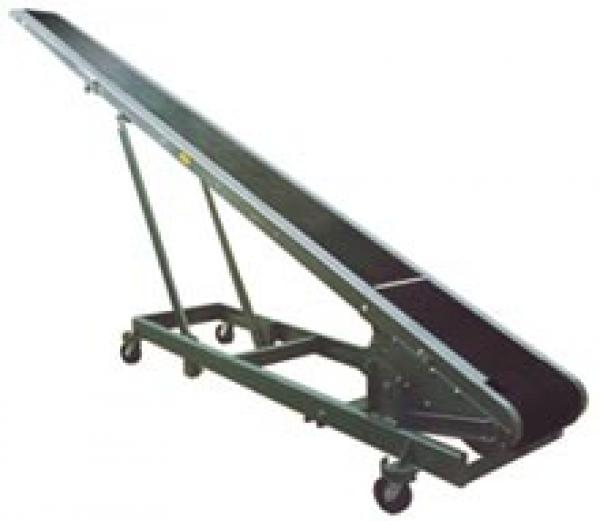

Portable Folding Booster Belt

Category: Belt Conveyors

The Model BA is ideal for stacking, loading and unloading. One lever control adjusts angle without effort. Desired angle automatically locked by power screw.

Features

Bed	4" deep x 20" wide x 12 ga. formed steel bed, hinged for storage purposes
Belt	14"
Belt Speed	65 FPM
Overall Conveyor Lengths	10', 12', 14', 16', 20', 22'
Motor	1 HP - 1-1/2 HP Available
Capacity	300 lbs. (total distributed load) - 150 lbs. (unit load)
Reversible	Yes
Features	Switch - Reversing drum with 20' power cord and plug, Self-powered Raising Device
Availability	4 Weeks (Contact for sizes available)
