Heavy Duty Horizontal Slat

Get a Quote

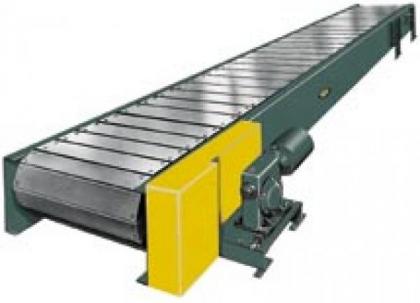

The Model SL steel belt slat conveyor is rugged in design providing lasting, dependable performance. It can be used to convey hot, oily parts or to move items through heat drying processes. It can also be used for assembly line and production operations.

Model SL Features:

  • Bed 17" deep x 10 ga. formed steel channel frame powder painted
  • Bed Widths 36",42",48",54"
  • Slat Formed steel 5-3/4" x 1-1/2" x 7 ga. channel
  • Motor 2 HP standard - 3 HP max.
  • Drive Chain 6" pitch bushed roller steel chain with 2" dia. high capacity roller bearing
  • Supports Adjustable SLS-Type Floor Supports Available
  • Capacity Maximum load per linear ft. of conveyor 1400 lbs. not to exceed rated capacities
