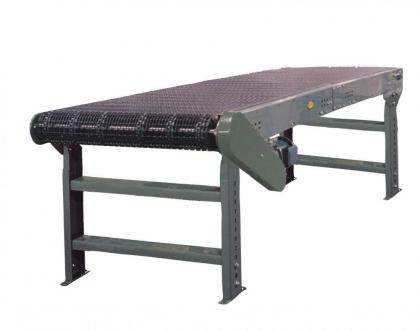

Wire Mesh Belt

Category: Belt Conveyors

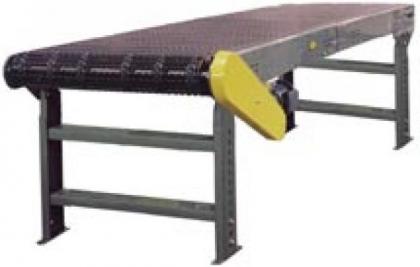

The Model TW with wire belt can carry hot or cold parts from ovens or freezers. Can be used in drying operations.

Features

Bed	6-5/8" deep x 12 ga. formed powder painted
Rollers	1.9" dia. x 16 ga. galvanized tread rollers
Belt	1/2" x 1" galvanized wire mesh belt
Belt Widths	12",18",24"
Motor	1/2 HP standard - 1 HP max.
Supports	Adjustable Floor Supports Available
Capacity	Maximum load per linear ft. of conveyor 75 lbs. not to exceed rated capacities
Product Temperature	350° F maximum

Product Specifications
