Medium Duty Accumulating-199-CREZD

Category: EZ Logic Conveyor

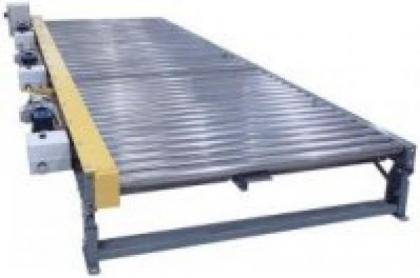

The model 199-CREZD is a chain driven live roller conveyor designed to handle cartons or pallets in conditions not suitable for belt driven rollers. Items are accumulated with Zero Back Pressure reducing the possibility of collisions that may result in product damage.

Features

Bed	3-1/2" x 7 ga. formed channel on side opposite chain guard and 4-3/4" x 7 ga. formed channel on chain guard side
Rollers	1.9" dia. x 9 ga. unplated rollers spaced every 4" or 6"
Overall Frame Widths	18", 20", 22", 24", 26", 28", 30", 34", 36", 40" & 42"
Drive	EZDRIVE
Motor	1/3 HP Shaft mounted gearmotor located near center of each zone
Supports	Adjustable Floor Supports Available
Capacity	Maximum load per linear foot of conveyor - 150 lbs with supports on 10 ft. centers, 250 lbs. with supports on 5 ft. centers. Not to exceed 1000 lbs. per zone.

Product Specifications
