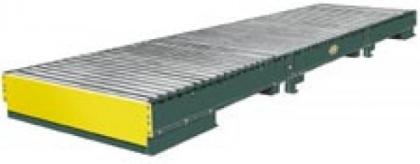

The Model 25-LREZ is a belt driven live roller conveyor designed for use where zero-pressure accumulation, low elevation (12"), and close roller centers are required.
Model 25-LREZ Features:
- Bed 7-1/2" deep x 10 ga. formed steel channel frame powder painted
- Rollers 2-1/2" dia. x 11 ga. unplated tread rollers spaced every 3" and 1.9" dia. x 16 ga. unplated pressure rollers spaced every 6"
- Overall Frame Widths 42", 44", 46", 48", 50", 52", 54", 64", 76", & 88"
- Motor 1 HP standard - 2 HP max.
- Supports Fixed Floor Supports Available
- Capacity Maximum load per linear foot of conveyor; 1000 lbs. Maximum unit load; 4000 lbs. Total load not to exceed rated capacities
- Other Accumulation Zones - 60" Long Standard Air Controlled. Other lengths available, Low Elevation
