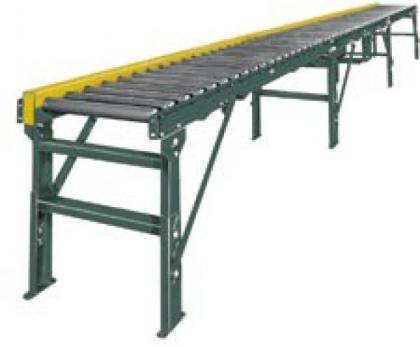

Heavy Duty Straight-25-CRR

Category: Live Roller Conveyors

The heavy design of the 25-CRR allows it to be used for conveying higher load capabilities such as loaded pallets and drums. Chain driven rollers make it ideal for conveying oily parts in bottling and steel industries.

Features

Bed	4 ga. formed steel channel frame powder painted
Rollers	Chain driven - 2-1/2" dia. x 11 ga. unplated tread rollers spaced every 4" with #40 chain; 3", 3-3/4", 5", 7-1/2", or 10" with #50 roller chain. #60 Roller Chain used on 3", 3-3/4", 6", 7-1/2", and 12" roller centers only
Overall Frame Widths	22-1/4", 24-1/4", 26-1/4", 28-1/4", 30-1/4", 34-1/4", 36-1/4", 40-1/4", 42-1/4", 46-1/4", 50-1/4", 54-1/4", 58-1/4", 64-1/4" & 70-1/4"
Drive	Center Drive
Motor	1 HP standard - 2 HP max.
Drive Chain	#40, 50, or 60 roller chain
Supports	Adjustable Floor Supports Available
Capacity	Maximum load per liner foot of conveyor; 300 lbs. with supports on 10' centers; 1000 lbs. with supports on 5' centers
Applications	pallet handling, drum handling
Availability	Online
