Heavy Duty Accumulating-25-CREZD

Get a Quote

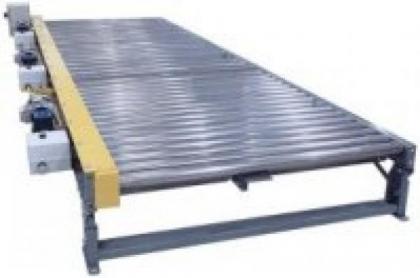

The Model 25-CREZD is a chain driven live roller conveyor designed to handle loads such as pallets, drums, etc. Items are accumulated with zero back pressure, reducing the possibility of collisions that may result in product damage.


Model 25-CREZD Features:

  • Bed 4" x 4 ga. formed steel channel frame powder painted
  • Rollers 2-1/2" dia. x 11 ga. unplated tread rollers spaced every 4" or 6"
  • Overall Frame Widths 34-1/4", 38-1/4", 42-1/4", 46-1/4", 50-1/4", 54-1/4", 58-1/4", 62-1/4", 66-1/4", & 70-1/4"
  • Drive 1/2 HP Shaft mounted gearmotor located near center of each zone
  • Supports Adjustable Floor Supports Available
  • Capacity Maximum load per linear foot of conveyor; 1000 lbs. Maximum unit load; 3000 lbs. Total load not to exceed rated capacities
  • Other Accumulation Zones - 60" Long standard. Other lengths available
