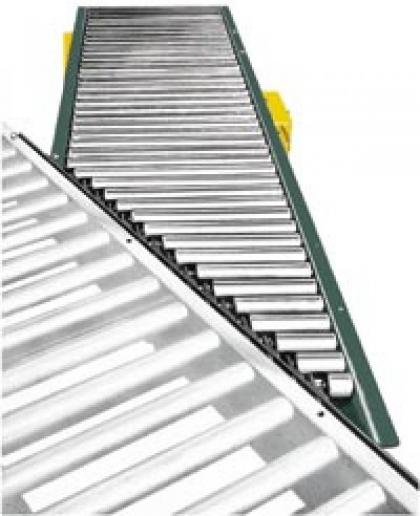

Medium Duty Straight Spur (V-Belt)- 190-LRSS

Category: Live Roller Conveyors

The live roller spur conveyors are used in diverging or converging applications. They may be self-powered or can be slave driven from ACC or LRC conveyors. These models available in 30° & 45° spurs.

Features

Bed	6-1/2" deep x 12 ga. formed steel frame powder painted
Rollers	1.9" dia. x 16 ga. galvanized rollers
Overall Frame Widths	16", 18", 20", 22", 24", 26", 28", 30", 34", 36", 40", & 42"
Motor	1/2 HP standard - 1 HP available
Supports	Adjustable Floor Supports Available
Capacity	500 lbs. (distributed load)

Product Specifications
