Channel Frame Roller Bed - Incline/Decline - Medium Duty

Get a Quote

For more details and pricing visit our Online Store

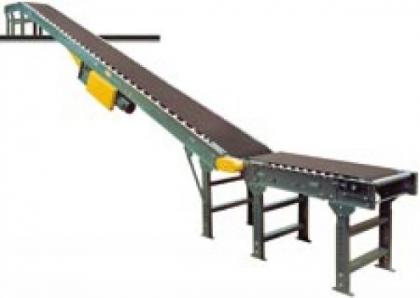

The Model RBI is a floor-to-floor incline conveyor. It is equipped with an adjustable double nose-over at the discharge end to insure a smooth transfer from the incline to horizontal plane. Inclines are easily adjusted up to 30°. This conveyor can also be used as a booster conveyor in gravity flow systems.



Model RBI Features:

  • 3 Bed Widths
  • Center Drive
  • Reversible
  • Brake Kit
  • System Ends
  • Double Nose-over
  • Pop-Out Roller
  • Powered Feeder
  • Ceiling Hangers Available
  • Undertrussing (18", 24" & 30" OAW From Stockyard Only)
  • Adjustable MS-Type Floor Supports Available



Model RBI Specifications:

  • Bed - 6-1/2" deep x 12 ga. formed steel frame powder painted. Standard sections come in lengths of 6', 8', & 10'
  • Belt Widths: 18", 24", 30"
  • Capacity - Up to 1245 lbs.
