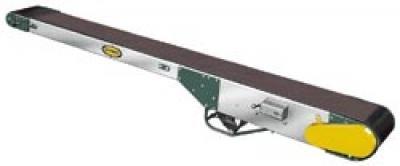

Aluminum Portable Narrow Belt Conveyor
Category: Belt Conveyors
The Model A, with its Roughtop belt, easily moves boxes, cases, and cartons up inclines. Its narrow width allows it to be used in a stairway for floor-to-floor conveying. It can be propped on a shelf for stacking or order picking. The Model A can be stored on its end in a minimum amount of space.
Features
| Bed | 12 in. wide x .080 aluminum, 6061-T6 heat treated, reinforced. |
|---|---|
| Belt | 10 in. wide Black Trackmate 120 Roughtop with PVC cover. Clipper lacing. |
| Belt Speed | Constant 83 FPM. |
| Overall Conveyor Lengths | 8', 10', 12', 14', & 16' |
| Motor | 1/2 HP maximum |
| Capacity | 200 lbs. total distributed load, 120 lbs. unit load at 65FPM |
| Reversible | Yes |
| Features | Switch - Reversing drum with power cord and plug |
