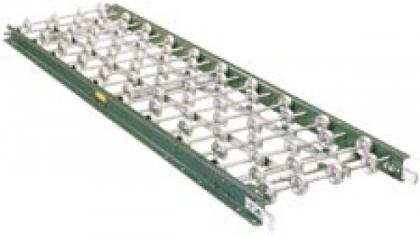

Gravity Skatewheel Straight- SW/AW

Get a Quote




The Model SW/AW Gravity Skatewheel conveyor is ideally used to convey lightweight packages or when operation requires lightweight sections. Skatewheel is useful in setting up temporary conveyor lines in warehousing activities, shipping departments, assembly areas, etc.

Model SW/AW Features:

  • Bed 2-1/2" deep x 1" flange x 12 ga. formed steel powder painted, or 1/8" heat treated aluminum channel
  • Wheels 1-15/16" O.D. steel or aluminum wheels
  • Overall Widths 12", 15", 18", & 24"
  • Capacity Maximum load per wheel 65 lbs. steel. 45 lbs. aluminum
  • Other Axles on 3" or 4" centers, Couplings use bolts on one end, hooks on opposite end
  • Availability Online
