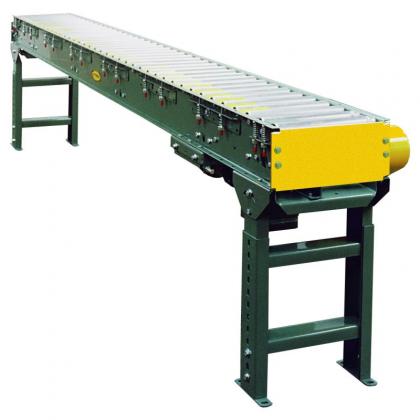

V-Belt Driven Light Duty Accumulating Conveyor - 138-ACC
Category: Accumulating Conveyors
The Model 138-ACC V-Belt Driven Light Duty Accumulating Conveyor is a simple method to accumulate cartons, boxes, and other similar items. Basic design eliminates complicated adjustments, and allows a minimum of 2% back pressure.
Features
| 4 Bed Widths | |
| 2% Minimum Back Pressure | |
| Finger Tip Snub Roller Adjustment, No Tools Needed | |
| Reversible | |
| Adjustable LS-Type Floor Supports Available | |
| Bed | 6-1/2" deep x 12 ga. formed steel channel frame powder painted |
|---|---|
| Rollers | 1-3/8" dia. x 18 ga. galvanized tread rollers spaced every 3" and 1-3/8" dia. x 18 ga. galvanized pressure roller spaced every 6" |
| Overall frame widths | 12", 15" , 18" , & 24" |
| Capacity | Maximum load per linear ft. of conveyor; 50 lbs., not to exceed rated capacities |
