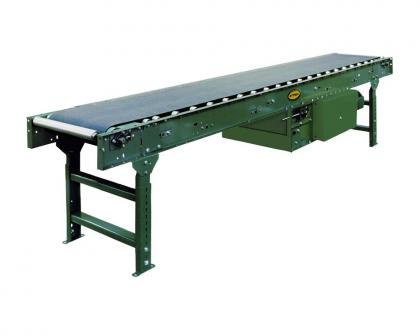

Channel Frame Roller Bed - Medium Duty

Get a Quote

For more details and pricing visit our Online Store

The Model RB is designed to move heavier unit loads. Roller bed design reduces belt friction and provides greater capacity. Applications include: assembly, inspection and packing operations.


Model RB Features:

  • 3 Bed Widths
  • Reversible
  • Moves Heavier Loads
  • Center Drive
  • System Ends
  • Pop-Out Roller
  • Adjustable MS-Type Floor Supports Available


Model RB Specifications:

  • Bed - 6-1/2" deep x 12 ga. formed steel frame powder painted
  • Rollers - 1.9" dia. x 16 ga. galvanized rollers spaced every 6"
  • Overall Frame Widths: 18", 24", 30"
  • Capacity - Maximum load per linear ft. of conveyor; 225 lbs., not to exceed rated capacities
