Trash Belt

Category: Belt Conveyors

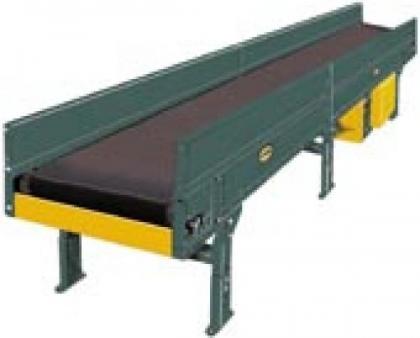

The Model TH is designed to handle empty cardboard boxes and paper trash.

Features

Bed	14 ga. formed steel slider bed bolted between two 7-1/2" deep x 12 ga. formed steel side channels with 6" high guards.
Belt Widths	11-1/2", 17-1/2", 23-1/2", 29-1/2", 35-1/2", 41-1/2", 47-1/2", 53-1/2"
Drive	Center Drive Standard
Motor	1 HP standard-2 HP max.
Supports	Adjustable Floor Supports Available
Capacity	Maximum load per linear ft. of conveyor 10 lbs. not to exceed rated capacities
