Light Duty - SW/SWC

Our Light Duty Gravity Conveyors are used to carry lightweight packages or are used when current operation requires lightweight sections. They are very useful in setting up temporary conveyor lines in warehousing activities or other similar locations such as shipping departments or assembly areas. Norpak has been a great reputation as a distributor of gravity conveyors, and we are always available to answer any questions or concerns you may have about our products.

Our Light Duty Gravity Conveyors Include:

• Straight Sections have bolts on one end, hooks on opposite end

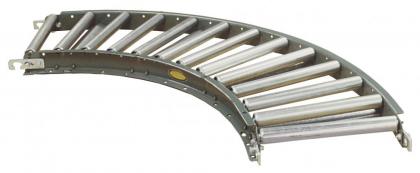

• Curved Sections have gravity hooks on both ends
• 1-15/16" O.D. Steel Wheels
• Maximum load capacity per wheel of 65 lbs. steel

Model SW / SWC - Steel Skatewheel Conveyor (Straight & Curved)

Straight or Curved Sections

• Steel Frame
• 3" axle centers
• 4 Widths
• 1-15/16" diameter steel rollers
• 5' ft.& 10' ft. long straight sections available
• 45° & 90° curves available

Model AW / AWC - Aluminum Skatewheel Conveyor (Straight & Curved)

Straight or Curved Sections

• Aluminum Frame
• 3" axle centers
• 4 Widths
• 1-15/16" diameter steel rollers
• 5' ft.& 10' ft. long straight sections available
• 45° & 90° curves available

Model SSR / SSRC - Steel 1-3/8 in. Dia. Roller (Straight & Curved)

Straight or Curved Sections

• Steel Frame
• 1/4" diameter axles
• 1-3/8" diameter steel rollers
• 5' ft.& 10' ft. long straight sections available
• 45° & 90° curves available

Model SAR / SARC - Aluminum 1-3/8 in. Dia. Roller (Straight & Curved)

Straight or Curved Sections

• Steel Frame
• 1/4" diameter axles
• 1-3/8" diameter steel rollers
• 5' ft.& 10' ft. long straight sections available
• 90° curves available

Model FX200 - Flexible Extendible Skatewheel Conveyor

Flexible Frame

• 18 in. widths
• 12 ft. lengths
• 200 lbs per linear foot capacity

Extendable Frame

• 24 in. widths
• 24 ft. lengths
• 200 lbs per linear foot capacity

Model BT - 1 in. Dia. Ball Caster Table

Steel Channel Frame

• Sizes: 3-1/2 in. x 1-1/2 in. x 10 ga. or 2-1/2 in. x 1 in. x 12 ga
• 1" Dia. Ball Casters
• Specify skatewheel or 138 Roller Type when mounted in 2-1/2 in. channel
