End Drive Units

Get a Quote

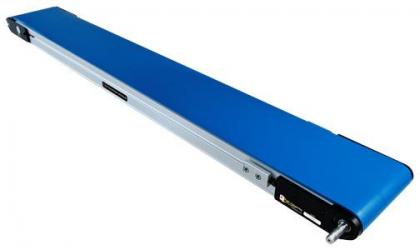

Our high performance End Drive Belt Conveyors are our most versatile low-profile units. They may be used for almost any application and will result in the solution for your production requirements. Norpak is a trusted distributor of low-profile conveyors and we are able to use our experience in knowledge in helping you find the right unit for your needs.



Our End Drive Conveyors Include:

  • Crowned Drive Pulleys
  • Rigid aluminum or steel frames
  • Tension Release tails
  • Large sealed durable ball bearings
  • Nosebar Tail (for aid in small transfers)



Specifications

  • 11 Varieties of Widths
  • Lengths: 18" to 20"
  • Profile: 1.95" High
  • Speeds up to 400 FPM
  • Loads up to 120lbs
  • Variety of Belt Options

Drives:

Side Drives

  • Standard Duty
  • 40, 90 and 200 Watt
  • Fixed Speeds: 4.5- 180 FPM (depending on Watts)
  • Heavy Duty: 12-120 FPM fixed speed



Top Drives

  • Standard Duty
  • 40, 90 and 200 Watt
  • Fixed Speeds: 4.5- 316 FPM (depending on Watts)
  • Heavy Duty: 12-120 FPM fixed speed



Bottom Drives

  • Standard Duty
  • 40, 90 & 200 Watt
  • Fixed Speeds: 4.5-316 FPM (depending on Watts)
  • Heavy Duty: 12-225 FPM



Brushless DC Motor and Standard Duty DC Control



Standard Duty DC Control

  • 50:1 Speed Range
  • UL/ULc/CE
  • IP20 Protection Rating
  • Three speed display modes
  • Multi-speed p[eration: up to 8



Brushless DC Motor

  • 120,200 and 400 Watt
  • Available for 115V Single Phase, 230V Single Phase, and 230V Three Phase
