Heavy Duty Horizontal Chain- DC-63

Category: Live Roller Conveyors

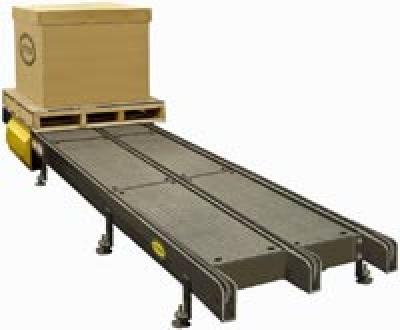

The Model DC-63 is a three strand drag chain conveyor designed to handle pallets.

Features

Bed	6" x 7 ga. powder painted formed steel angle with 1-1/2" x 3/16" wall steel chain support tube
Overall Frame Widths	37-7/8", 43-7/8", 49-7/8", 55-7/8", 61-7/8", 67-7/8", 73-7/8", 79-7/8", 85-7/8", 91-7/8", & 99-7/8"
Motor	1-1/2 HP Gearmotor
Supports	Floor Supports Available
Capacity	6000 lbs. maximum load at 30 FPM
Features	Modular Assembly
Other	C-2060-H Double Pitch Conveyor Chain

Product Specifications
