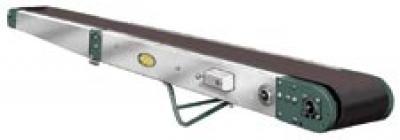

Aluminum Portable Folding Belt Conveyor

Category: Belt Conveyors

The Model R, besides being extremely convenient (it can be folded in half), is also extremely versatile. For example, its conveying uses include: truck, loft or freight car, floor-to-floor, stairway, as well as its use as a portable booster with a wheel or roller conveyor. It is also suitable for bag handling, bag and carton stacking, and moving cartons, cases, and boxes.

Features

Bed	18 in. wide x .080 aluminum, 6061-T6 heat treated, reinforced.
Belt	12 in. wide Black Trackmate 120 Roughtop with PVC cover. Clipper lacing.
Belt Speed	Constant 65 FPM.
Overall Conveyor Lengths	10', 11 1/2', 13', 15', 17', 19', & 21'
Motor	1 HP maximum
Capacity	300 lbs. total distributed load, 150 lbs. unit load at 65FPM
Reversible	Yes
Features	Switch - Reversing drum with power cord and plug

Product Specifications
