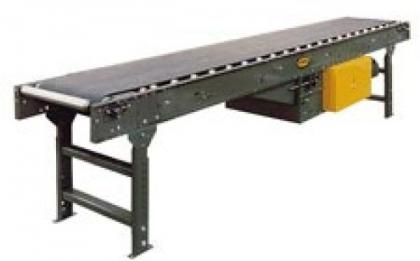

Medium Duty Belted Conveyor
Category: Belt Conveyors
The Model RB is designed to move heavier loads. Roller bed design reduces belt friction and provides greater capacity. Applications include: assembly, inspection and packing operations.
Features
| Bed | 6-1/2" deep x 12 ga. formed steel frame powder painted |
|---|---|
| Rollers | 1.9" dia. x 16 ga. galvanized rollers spaced every 6" |
| Overall Frame Widths | 16", 18", 20", 22", 24", 26", 28", 30", 34", 36", 40", 42", 48", 54", 60" |
| Drive | Center Drive Standard |
| Motor | 1/2 HP standard - 2 HP max. |
| Supports | Adjustable Floor Supports Available |
| Capacity | Maximum load per linear ft. of conveyor; 225 lbs. not to exceed rated capacities |
| Reversible | Yes |
| Availability | Online |
