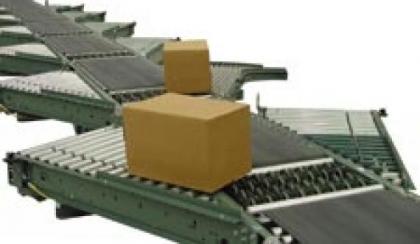

ProSort SC1 & SC2 - Horizontal Belt Sortation

Get a Quote


The Model ProSort SC series of sorters are belt driven sortation conveyors. The belt concept provides a reliable method of tracking packages to the divert stations. Take-away spurs may be skatewheel type or powered type slaved from the main sorter.


Model ProSort SC Features:

  • Bed Roller bed with 1.9" dia. x 16 ga. rollers with ABEC-1 bearings spaced every 6". Mounted in 6-1/2" deep x 12 ga. powder painted formed steel channel frame
  • Belt Speed Determined by application requirements, 300 FPM maximum
  • Overall Widths 18" single side only - 24", 30" & 36" single or double sided
  • Drive High performance center drive with shaft-mounted gearmotor and variable speed controller, horsepower based on speed and length
  • Other Right hand, Left hand or Two-Sided diverts available
  • Diverter Specifications
    • Diverter Mechanism-Two banks of twin pivoting 3-1/8" dia. wheels with urethane treads driven by 3/8" dia. urethane belts.
    • Positioning Diverter-Diverter used at infeed of two-sided sorters to position packages for proper diverting
    • Drive-Slave driven from main belt conveyor
    • Air Requirements-Working pressure 60 p.s.i.
    • Package Size-Minimum 6" wide x 9" long
    • Capacity-Maximum unit package weight-75 lbs.
